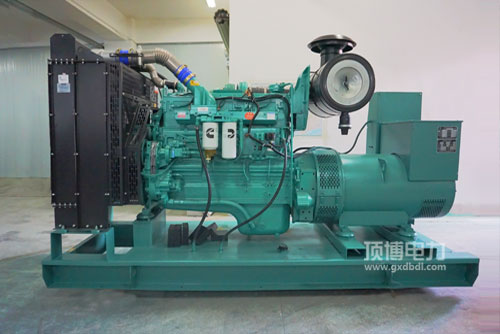

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯风能发电用发起机燃料资金性好: 高级的燃料抑制软件，别具一格 的STC、ESTC 分级分类抑制软件，特种规划的活塞式表层熔化室，高电压压喷射燃料，充足吸雾，熔化充足。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯电站用启驱力瞬态机械性能出众: 高品质的启驱力纵向制作，积极配合康明斯个性的EFC平台，设定精确度提高，异常时间段快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯并网发电用启心理升工作功率高: 大体设定紧凑型.外观摆设合理可行，运营稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷cpu类型 QSNT. QSK19. QSK38. QSK50考虑中非发展然后环节及亚洲Tier2. Tier 3进行排放法律规范必须。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零配件能得性好， 发起机运转及定期检查养生保健友盒，代价低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

电率时间范围 Power Range   224-310KW技术要求 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观简约时尚长宽 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净质 Dry Weight   940kg

224-310KW康明斯发电站用起行为的亮点：体积计算小， 挤压比低， 防雨百叶的空气热处理，非常易初始化，转移车机供电的优选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

热车机机型	所用公率(kW)Prime Power	备用电源工作功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
